Mozaik Manufacturing Plus Optimizer ™
Add the Optimizer to get more out of your material. In addition to all the essential features you get with Mozaik Manufacturing, the Optimizer addition will give you the ability to optimize your parts onto sheets and get the best yield out of your material.It uses advanced optimizing routines to produce unmatched results. The Optimizer gives you total control over the optimization and nesting process. Use the import feature to import DXF parts from other programs or import complete part lists from CSV files. Use the built-in Part Editor to shape parts and add custom operations.
Optimize for Table or Panel Saw Processing

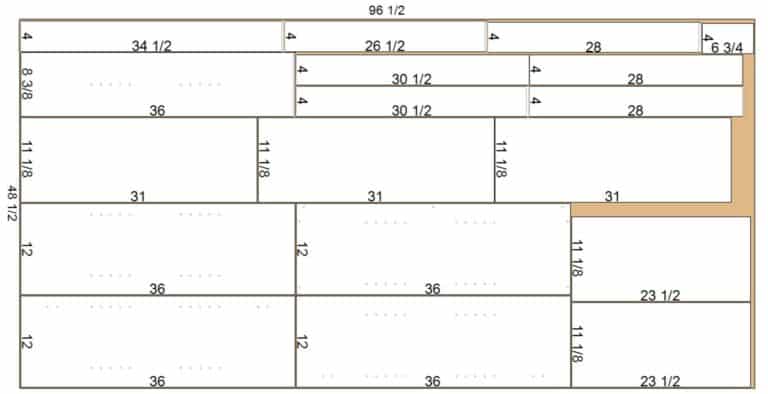

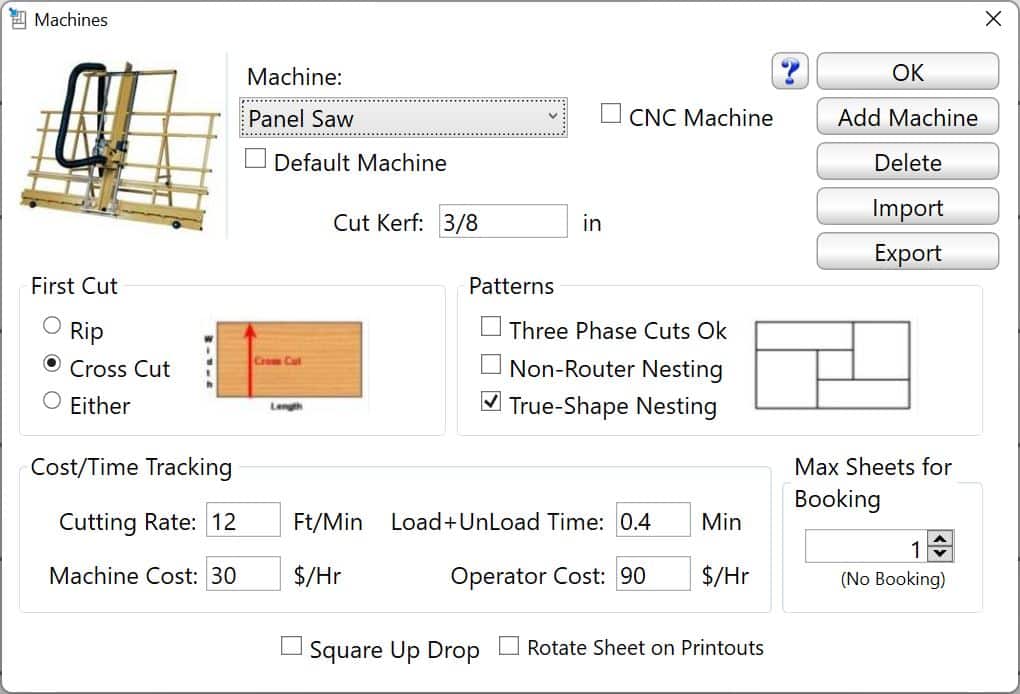

Set your saw optimization parameters for first cuts to be Rip Cuts, Cross Cuts or Three Phase Cutting options. Advanced “Saw Nesting” allows for complex cutting on manual table saws. Irregular-shaped parts can be nested using the true-shape nesting feature. Parts can be grouped for better yield and grain matching.
Grain Matching
Make quick work of grain matching doors and drawer fronts. Choose from vertical or horizontal grain direction and let the Optimizer do the hard work.
Use the drag and drop feature to move parts on the nest, bump the parts into place to within tool tolerance. Copy and paste parts from one sheet to another. The Mozaik Optimizer is the perfect blend of advanced automation and manual control.
Part Export Options

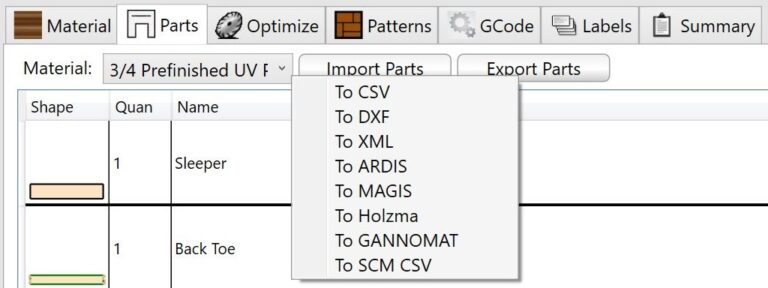

Export your parts or patterns to a variety of file formats for manufacturing with Beam or Panel Saws, or thru feed CNCs. You can “Book” your patterns to process multiple identical sheets at once. Square up your off cuts and create remnants for use with future jobs. Simply right click on an open area in the sheet, check the appropriate box and you’re done. Fast. Simple. The way software should be.
